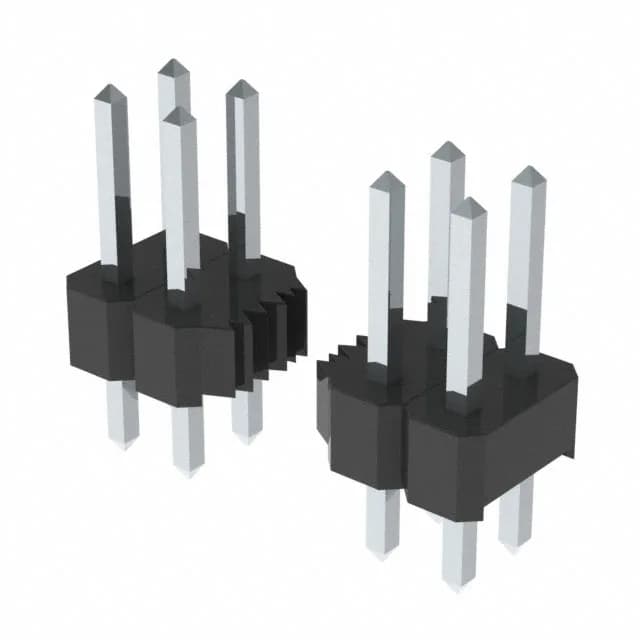

Sullins Connector Solutions PREC040DAAN-RC
MPNPREC040DAAN-RC
Active
CONN HEADER VERT 80POS 2.54MM
$1.0300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.098\" (2.50mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 80 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.448\" (11.39mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.230\" (5.84mm) |
