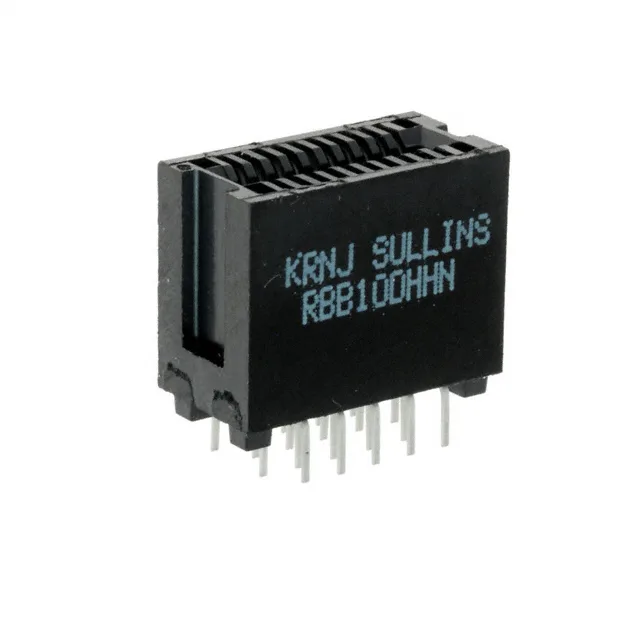

Sullins Connector Solutions RBB10DHHN
MPNRBB10DHHN
Active
CONN EDGE DUAL FMALE 20POS 0.050
$8.02Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Card type | Non Specified - Dual Edge |
| Type | Hairpin Bellows |
| Mounting | Through Hole |
| Operating temperature | -65°C ~ 125°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Material - insulation | Polyphenylene Sulfide (PPS) |
| Pitch | 0.050\" (1.27mm) |
| Gender | Female |
| Package | Tube |
| Read out | Dual |
| Termination | Solder, Staggered |
| Card thickness | 0.062\" (1.57mm) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 20 |
| Contact finish thickness | 10.0µin (0.25µm) |
| Number of positions (Bay, row) | 10 |
