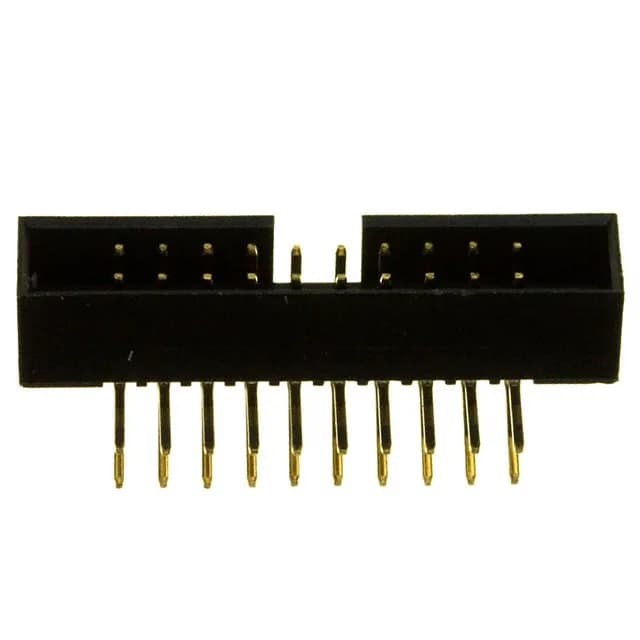

Sullins Connector Solutions SBH21-NBPN-D10-RA-BK
MPNSBH21-NBPN-D10-RA-BK
Active
CONN HEADER R/A 20POS 2MM
$1.3200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSBH21
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SBH21 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.213\" (5.40mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 20 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | Flash |
