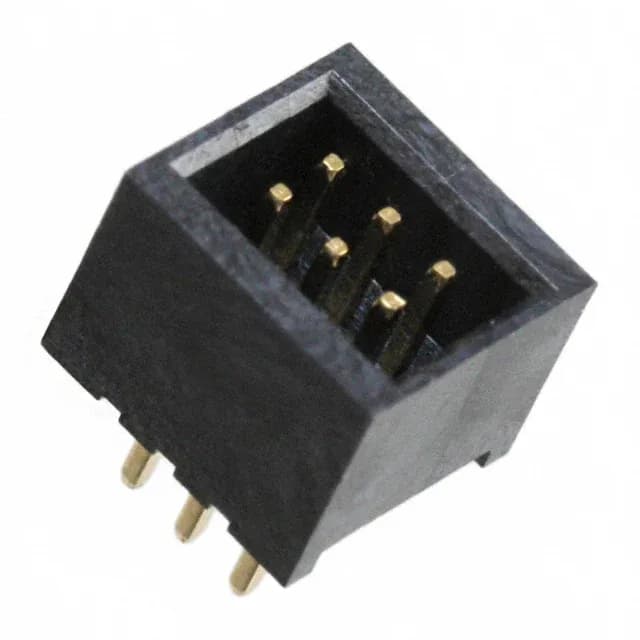

Sullins Connector Solutions SBH51-LPSE-D03-ST-BK
MPNSBH51-LPSE-D03-ST-BK
Active
CONN HEADER VERT 6POS 1MM
$1.3300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSBH51
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SBH51 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1A per Contact |
| Operating temperature | -40°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.134\" (3.40mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.039\" (1.00mm) |
| Positions | 6 |
| Row spacing - mating | 0.039\" (1.00mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.098\" (2.50mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 10.0µin (0.25µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
