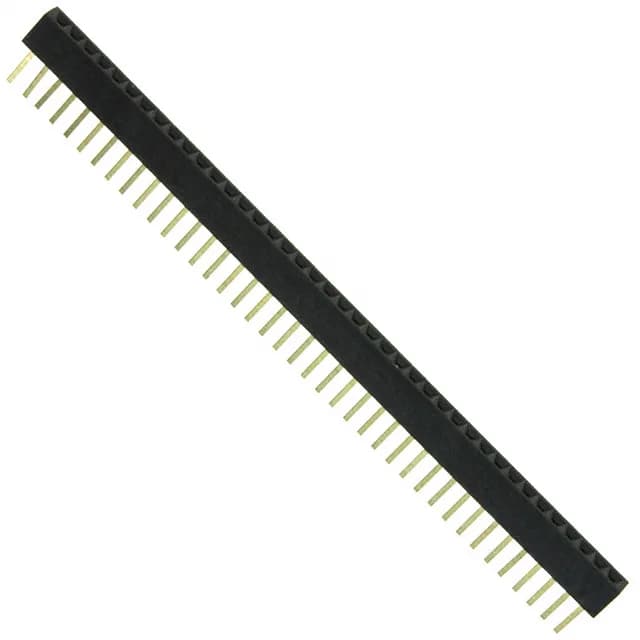

Sullins Connector Solutions SFM210-LPSE-S40-ST-BK
MPNSFM210-LPSE-S40-ST-BK
Active
CONN HDR 40POS 0.039 GOLD PCB
$9.2900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSFM210
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SFM210 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1A |
| Operating temperature | -40°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.083\" (2.10mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.039\" (1.00mm) |
| Positions | 40 |
| Contact finish - post | Gold |
| Contact length - post | 0.094\" (2.40mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
