Sullins Connector Solutions SMH100-LPSE-S15-ST-BK
MPNSMH100-LPSE-S15-ST-BK
Active
CONN HEADER VERT 15POS 1MM
$3.01Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSMH
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SMH |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1A |
| Operating temperature | -40°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.039\" (1.00mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.039\" (1.00mm) |
| Positions | 15 |
| Contact finish - post | Gold |

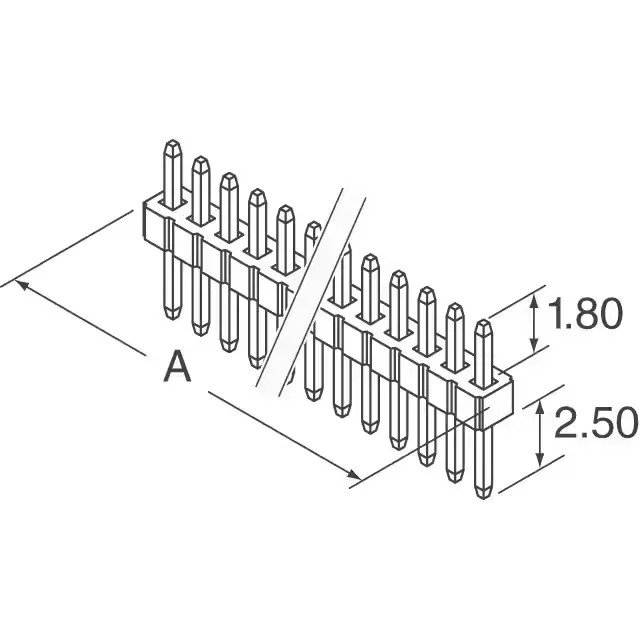

| Contact length - post | 0.098\" (2.50mm) |
| Overall contact length | 0.209\" (5.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.071\" (1.80mm) |
| Contact finish thickness - post | 10.0µin (0.25µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
