Switchcraft Inc. 236
MPN236
Active

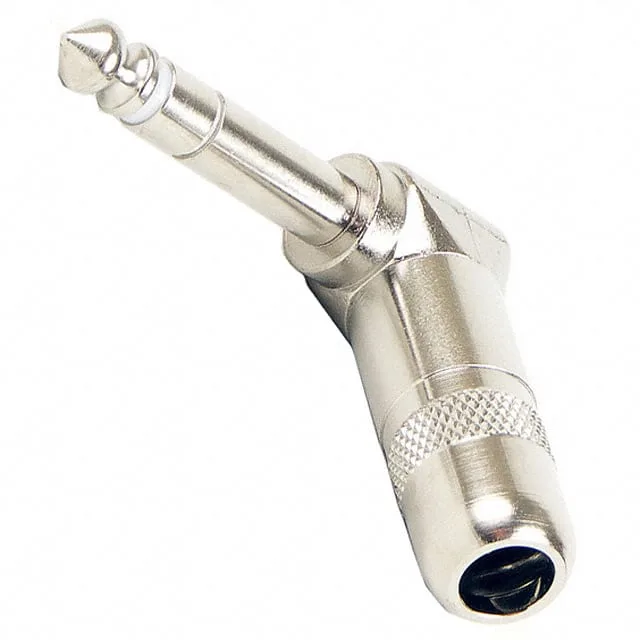

CONN PLUG STEREO 6.35MM RA 3COND
$9.35Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series236
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 236 |
| Mounting | Free Hanging (In-Line), Right Angle |
| Connector type | Phone Plug |
| Voltage - rated | 500VAC |
| Cable opening | 0.297\" (7.54mm) |
| Operating temperature | -20°C ~ 65°C |
| Body color | Silver |
| Body material | Zinc Die Cast |
| Contact material | Copper Alloy |
| Housing material | Brass |
| Contact material - plating | Nickel |
| Gender | Male |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Includes | 3 pcs - 1 Connector, 1 Handle, 1 Insulator Tube |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Signal lines | Stereo (3 Conductor, TRS) |
| Actual diameter | 0.250\" (6.35mm) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 3 Conductors, 3 Contacts |
| Industry recognized mating diameter | 6.35mm (0.250\", 1/4\") - Headphone |
