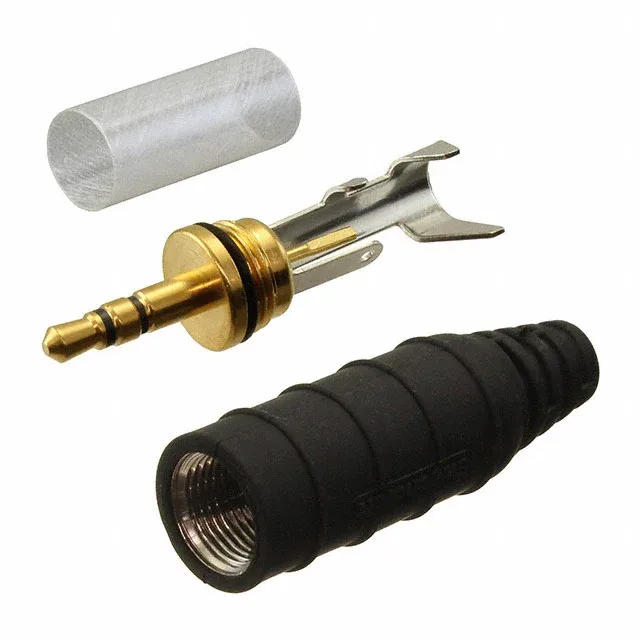

Switchcraft Inc. 35HDSAU15
MPN35HDSAU15
Active
3.5MM SLD STEREO PLUG .15 GOLD,
$12.16Ref. price · indicative, final on quote
Series35HD
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 35HD |
| Mounting | Free Hanging (In-Line) |
| Connector type | Phone Plug |
| Voltage - rated | 250VAC, 140VDC |
| Current rating | 4 A |
| Cable opening | 0.150\" ~ 0.175\" (3.81mm ~ 4.45mm) |
| Operating temperature | -20°C ~ 85°C |
| Body color | Gold, Black |
| Body material | Copper Alloy |
| Contact material | Copper Alloy |
| Housing material | Copper Alloy |
| Mating length (Depth) | 0.560\" (14.20mm) |
All specifications
| Parameter | Value |
|---|---|
| Contact material - plating | Gold |
| Gender | Male |
| Package | Bulk |
| Features | Sealed, Strain Relief |
| Includes | 4 pcs - 1 Connector, 1 Handle, 1 Insulator Tube, 1 O-Ring |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Signal lines | Stereo (3 Conductor, TRS) |
| Actual diameter | 0.140\" (3.56mm) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 3 Conductors, 3 Contacts |
| Industry recognized mating diameter | 3.50mm (0.141\", 1/8\", Mini Plug) - Headphone |
