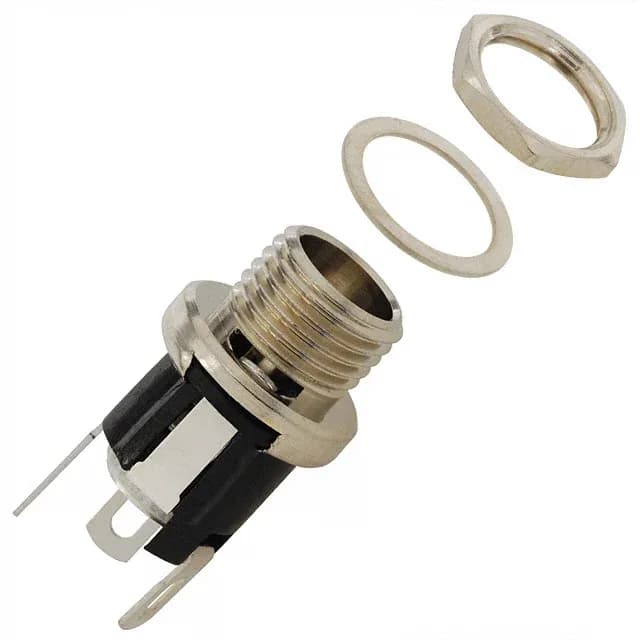

Switchcraft Inc. 712A
MPN712A
Active
CONN PWR JACK 2.5X5.5MM SOLDER
$5.9100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Panel Mount |
| Connector type | Jack |
| Voltage - rated | 48V |
| Current rating | 5 A |
| Mounting feature | Bulkhead - Front Side Nut |
| Body color | Black |
| Body material | Copper Alloy |
| Contact material | Copper Alloy |
| Housing material | Thermoplastic |
| Mating length (Depth) | 0.374\" (9.50mm) |
| Contact material - plating | Silver |
| Gender | Male |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Mounting Hardware, Thread Lock |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Actual diameter | 0.098\" (2.50mm ID), 0.217\" (5.50mm OD) |
| Internal switch | Single Switch, Normally Closed |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 2.50mm ID (0.098\"), 5.50mm OD (0.217\") |
