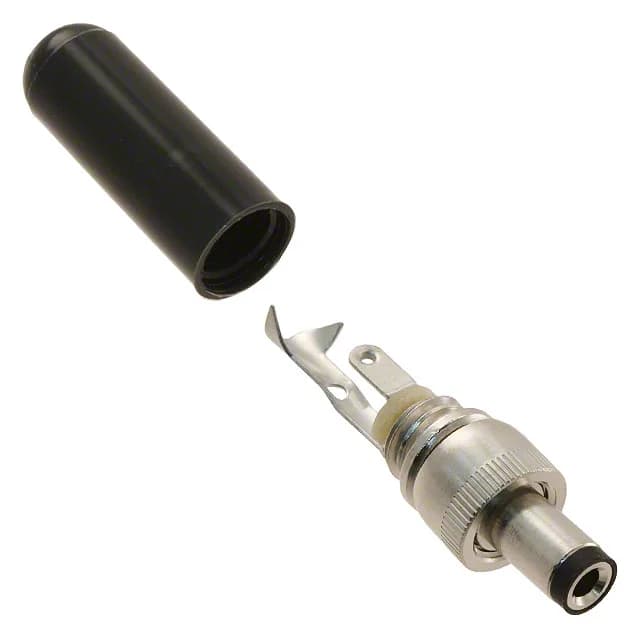

Switchcraft Inc. 760K
MPN760K
Active
CONN PWR PLUG 2.5X5.5MM SOLDER
$6.7100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Current rating | 5 A |
| Body color | Silver, Black |
| Body material | Brass |
| Contact material | Brass |
| Housing material | Thermoplastic |
| Insulation color | Black |
| Contact material - plating | Nickel |
| Gender | Female |
| Package | Bulk |
| Features | Mounting Hardware, Thread Lock |
All specifications
| Parameter | Value |
|---|---|
| Includes | 2 pcs - 1 Connector, 1 Handle |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Actual diameter | 0.098\" (2.50mm ID), 0.217\" (5.50mm OD) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 2 Conductors, 2 Contacts |
| Industry recognized mating diameter | 2.50mm ID (0.098\"), 5.50mm OD (0.217\") |
