Switchcraft Inc. AAA6MZ
MPNAAA6MZ
Active

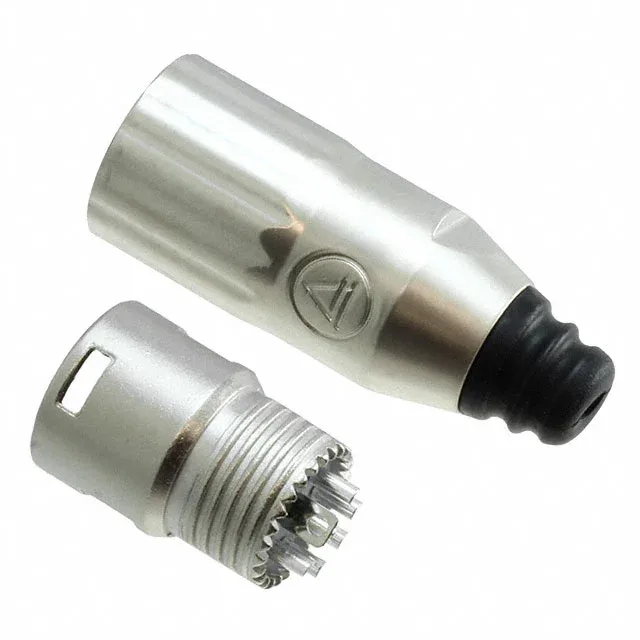

CONN RCPT MALE XLR 6P SOLDER CUP
$9.08Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesQ-G® AAA
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Q-G® AAA |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle, Male Pins |
| Fastening type | Latch Lock |
| Voltage rating | 125VAC |
| Current rating | 7.5A |
| Cable opening | 0.100\" ~ 0.220\" (2.54mm ~ 5.59mm) |
| Color | Silver |
| Shell material | Zinc Alloy |
| Insert material | Thermoplastic |
| Contact material | Copper Alloy |
| Primary material | Metal |
All specifications
| Parameter | Value |
|---|---|
| Backshell material, plating | Zinc Alloy, Nickel |
| Package | Bulk |
| Features | Backshell, Cable Clamp, Ground, Strain Relief |
| Shielding | Shielded |
| Orientation | Keyed |
| Termination | Solder Cup |
| Applications | Audio, Industrial, Instrumentation, Medical |
| Shell finish | Nickel |
| Positions | 6 |
| Shell size - insert | XLR |
| Contact finish - mating | Silver |
