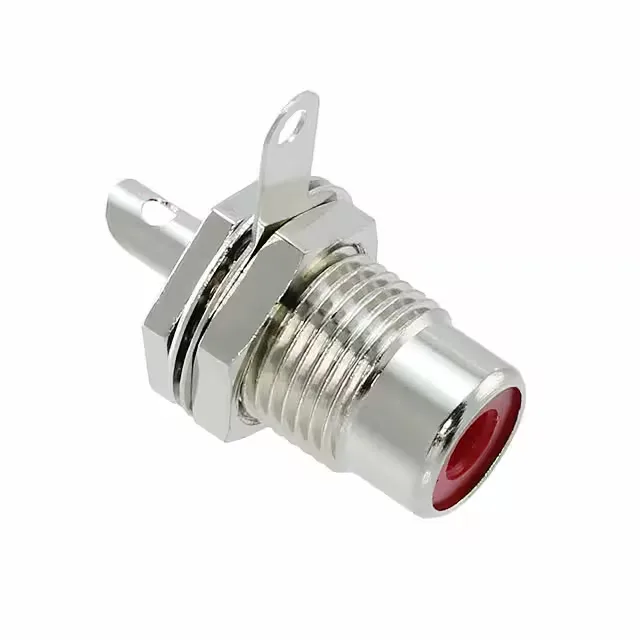

Switchcraft Inc. BPJR02X

Switchcraft Inc. BPJR02X

MPN BPJR02X
Active

CONN RCA JACK MONO 3.2MM PNL MT

$2.1 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

BPJR02X key specifications
ParameterValue
MountingPanel Mount
Connector typePhono (RCA) Jack
Body colorSilver
Body materialBrass
Contact materialBrass
Insulation colorRed
Contact material - platingNickel
GenderFemale
PackageBulk
FeaturesGrounding Tab, Mounting Hardware
Includes3 pcs - 1 Connector, 1 Nut, 1 Washer
ShieldingUnshielded

All specifications

BPJR02X additional specifications
ParameterValue
TerminationSolder Eyelet(s)
Connector size3/8\"-32
Signal linesMono
Actual diameter0.134\" (3.40mm ID), 0.325\" (8.25mm OD)
Panel hole size0.375\" (9.52mm)
Internal switchDoes Not Contain Switch
Number of positions (Contacts)2 Conductors, 2 Contacts
Industry recognized mating diameter3.20mm ID, 9.00mm OD (RCA)
