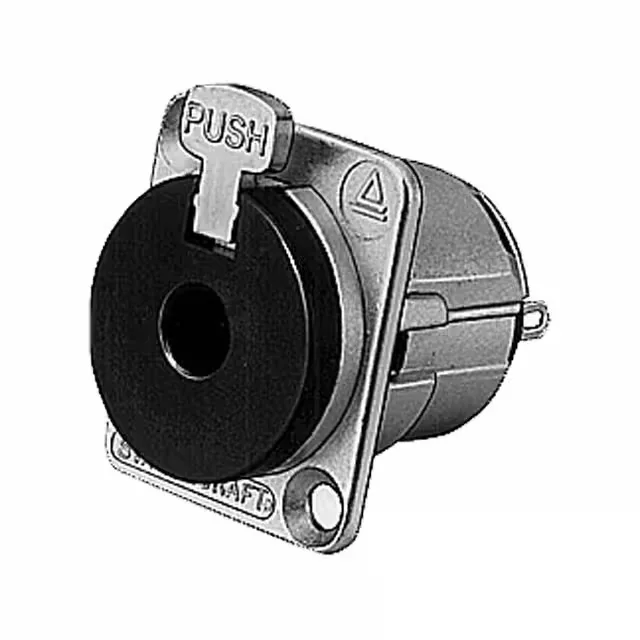

Switchcraft Inc. E112BL
MPNE112BL
Active
CONN JACK STEREO 6.35MM PNL MNT
$9.62Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | E |
| Mounting | Panel Mount |
| Connector type | Phone Jack |
| Voltage - rated | 48VDC |
| Current rating | 250 mA |
| Operating temperature | -20°C ~ 65°C |
| Body color | Silver, Black |
| Body material | Thermoplastic |
| Contact material | Copper Alloy |
| Housing material | Zinc Die Cast |
| Contact material - plating | Tin |
| Gender | Female |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Flange, Lock |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Signal lines | Stereo (3 Conductor, TRS) |
| Actual diameter | 0.253\" (6.43mm) |
| Panel hole size | 0.937\" (23.80mm) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 3 Conductors, 3 Contacts |
| Industry recognized mating diameter | 6.35mm (0.250\", 1/4\") - Headphone |
