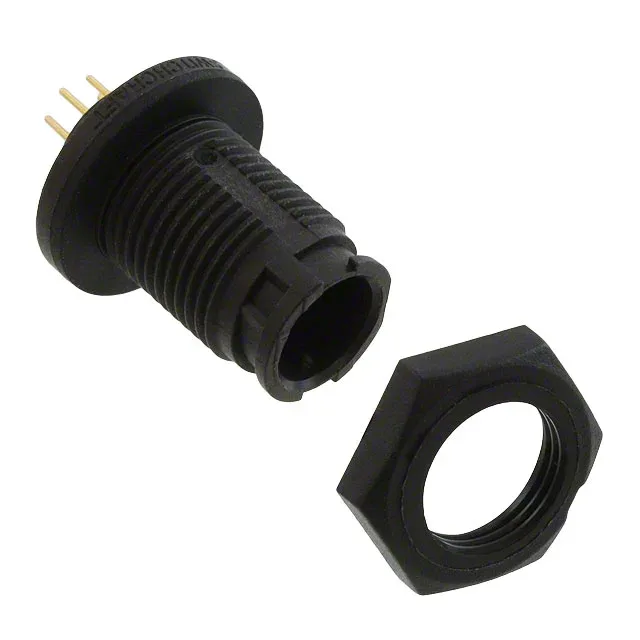

Switchcraft Inc. EN2P4F22P
MPNEN2P4F22P
Active
CONN RCPT FMALE 4POS GOLD SOLDER
$9.7Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEN2™
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | EN2™ |
| Mounting | Panel Mount, Through Hole |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Bayonet Lock |
| Voltage rating | 125VAC/DC |
| Current rating | 1.5A |
| IP rating | IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -40°C ~ 85°C |
| Color | Black |
| Shell material | Thermoplastic |
| Insert material | Elastomer |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Copper Alloy |
| Primary material | Plastic |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Solder |
| Applications | Communication Systems, Industrial, Marine, Medical |
| Positions | 4 |
| Contact finish - mating | Gold |
