Switchcraft Inc. EN3C3M16X
MPNEN3C3M16X
Active

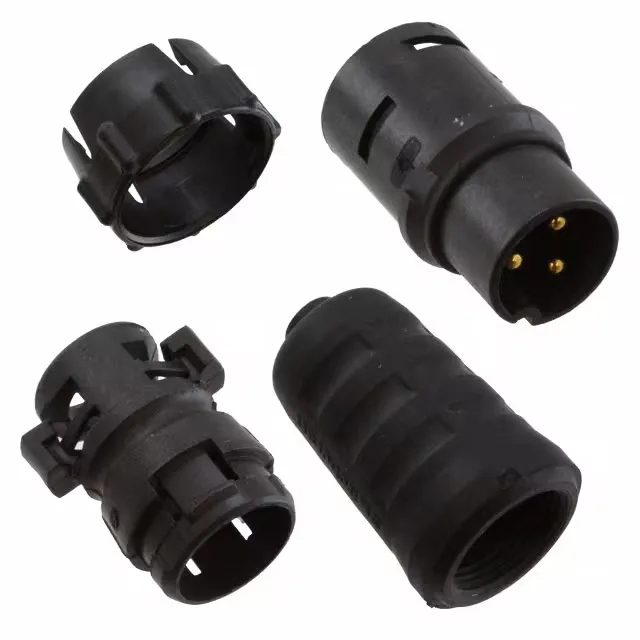

CONN PLUG MALE 3P GOLD SLDR CUP
$8.34Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEN3®
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | EN3® |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pins |
| Fastening type | Bayonet Lock |
| Voltage rating | 250VAC/DC |
| Current rating | 13A |
| IP rating | IP66/IP68 - Dust Tight, Water Resistant, Waterproof |
| Cable opening | 0.160\" ~ 0.265\" (4.06mm ~ 6.73mm) |
| Operating temperature | -40°C ~ 65°C |
| Color | Black |
| Shell material | Thermoplastic |
| Insert material | Elastomer |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Copper Alloy |
| Primary material | Plastic |
| Backshell material, plating | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Backshell, Cable Clamp, Coupling Nut |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Solder Cup |
| Applications | General Purpose, Instrumentation, Marine, Medical |
| Positions | 3 |
| Contact finish - mating | Gold |
