Switchcraft Inc. HS2C5M20C
MPNHS2C5M20C
Active

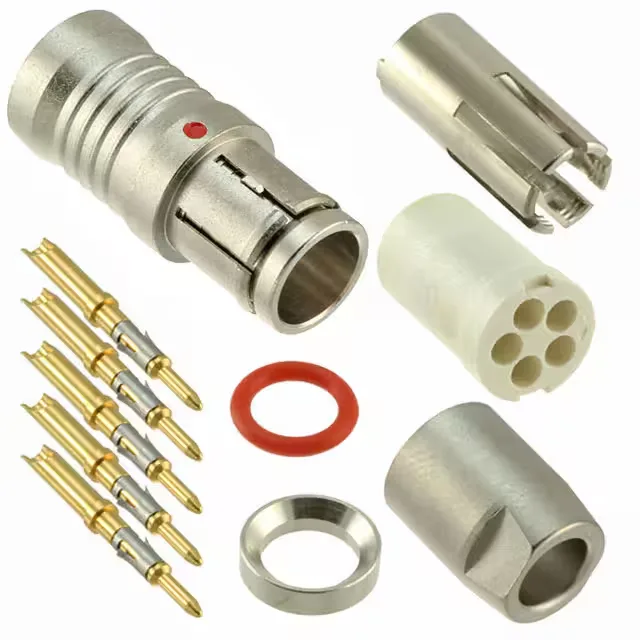

CONN PLUG MALE 5POS GOLD CRIMP
$27.5Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDura-Pull™, HS
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Dura-Pull™, HS |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pins |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC/DC |
| IP rating | IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof |
| Cable opening | 0.180\" ~ 0.216\" (4.57mm ~ 5.49mm) |
| Operating temperature | -40°C ~ 135°C |
| Color | Silver |
| Shell material | Copper Alloy |
| Insert material | Liquid Crystal Polymer (LCP) |
| Contact material | Copper Alloy |
All specifications
| Parameter | Value |
|---|---|
| Primary material | Metal |
| Material flammability rating | UL94 HF-1 |
| Package | Bulk |
| Shielding | Shielded |
| Orientation | Keyed |
| Termination | Crimp or Solder Cup |
| Applications | Agriculture, Audio, General, Medical, Testing Equipment & Measurement |
| Shell finish | Electroless Nickel |
| Positions | 5 |
| Contact finish - mating | Gold |
