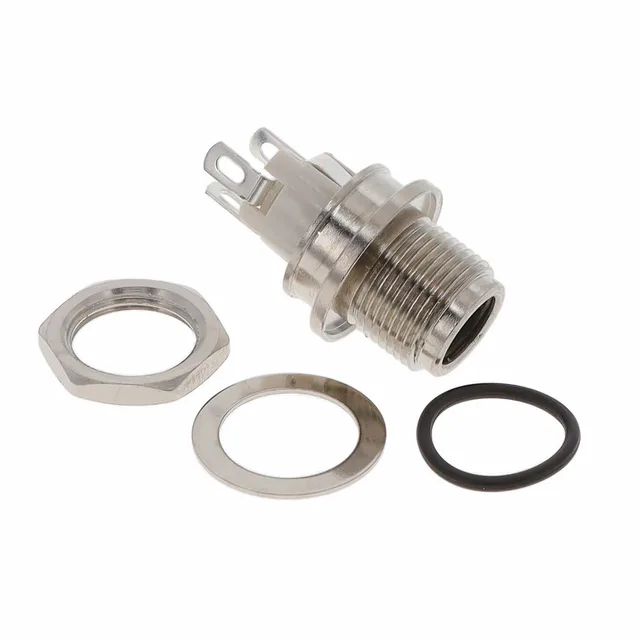

SEALED POWER JACK, 0.10" (2.5MM)
$7.81Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Mounting type | Through Hole |
| Connector type | Jack |
| Voltage - rated | 24VDC |
| Current rating | 7.5 A |
| Ingress protection | IP68 |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -40°C ~ 105°C |
| Body color | Beige |
| Body material | Copper Alloy |
| Contact material | Copper Alloy |
| Housing material | Thermoplastic |
| Contact material - plating | Silver |
| Gender | Male |
| Package | Bulk |
| Features | Mounting Hardware |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Thread size | 7/16\"-32 |
| Actual diameter | 0.098\" (2.50mm ID) |
| Internal switch | Single Switch, Normally Closed |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 2.50mm ID (0.098\"), 5.54mm OD (0.218\") |
Sourcing this connector
Switchcraft Inc. L712ASH is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Switchcraft Inc. and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
