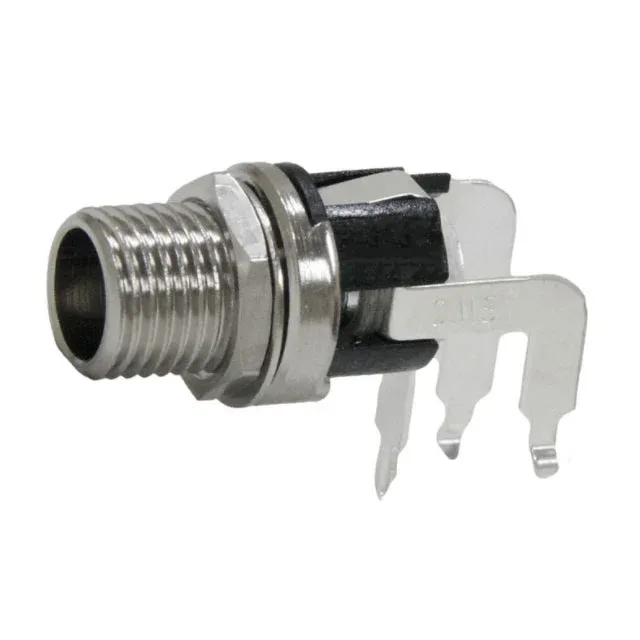

Switchcraft Inc. L712RALP
MPNL712RALP
Active
LOW PROFILE RAPC MOUNT DC POWER
$7.51Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesLP
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | LP |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Jack |
| Voltage - rated | 12VDC |
| Current rating | 5 A |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -55°C ~ 85°C |
| Body color | Silver |
| Body material | Copper Alloy |
| Contact material | Copper Alloy |
| Housing material | Copper Alloy |
| Mating length (Depth) | 0.472\" (12.00mm) |
All specifications
| Parameter | Value |
|---|---|
| Contact material - plating | Silver |
| Gender | Male |
| Package | Bulk |
| Features | Mounting Hardware, Thread Lock |
| Shielding | Unshielded |
| Termination | Solder |
| Connector size | 5/16\"-32 |
| Internal switch | Single Switch, Normally Closed |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 2.50mm ID (0.098\"), 5.50mm OD (0.217\") |
