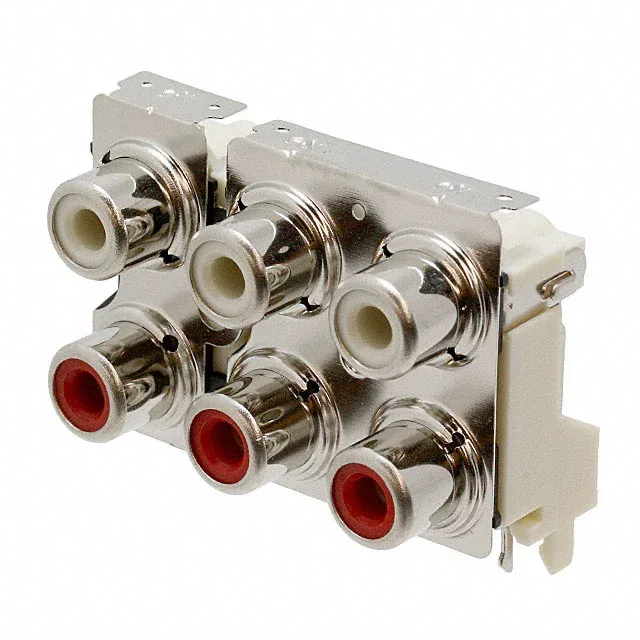

Switchcraft Inc. PJRAS3X2S01X
MPNPJRAS3X2S01X
Active
CONN RCA JACK MONO 3.2MM R/A
$4.58Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPJR
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PJR |
| Mounting | Through Hole, Right Angle |
| Connector type | Phono (RCA) Jack |
| Voltage - rated | 34VAC/DC |
| Current rating | 2 A |
| Operating temperature | -25°C ~ 85°C |
| Body color | Silver, White |
| Body material | Copper Alloy |
| Contact material | Copper Alloy |
| Housing material | Acrylonitrile Butadiene Styrene (ABS) |
| Insulation color | Red, White |
| Contact material - plating | Tin |
All specifications
| Parameter | Value |
|---|---|
| Gender | Female |
| Package | Bulk |
| Features | Grounding Tab |
| Shielding | Shielded |
| Termination | Solder |
| Signal lines | Mono |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 6 Sets of 2 Conductors, 9 Contacts |
| Industry recognized mating diameter | 3.20mm ID, 9.00mm OD (RCA) |
