Switchcraft Inc. RA49B12B
MPNRA49B12B
Active
CONN JACK STEREO 6.35MM R/A
$3.64Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesRA Jax®
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | RA Jax® |
| Mounting | Through Hole, Right Angle |
| Connector type | Phone Jack |
| Body color | Black |
| Contact material | Copper Alloy |
| Housing material | Thermoplastic, Polyester |
| Contact material - plating | Silver |
| Gender | Female |
| Package | Bulk |
| Features | Board Guide |

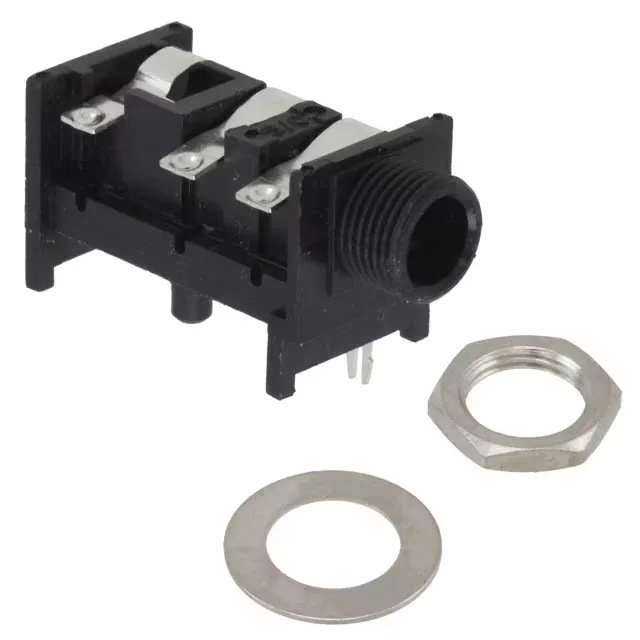

| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Shielding | Unshielded |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Connector size | 3/8\"-32 |
| Signal lines | Stereo (3 Conductor, TRS) |
| Actual diameter | 0.253\" (6.43mm) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 3 Conductors, 3 Contacts |
| Industry recognized mating diameter | 6.35mm (0.250\", 1/4\") - Headphone |
