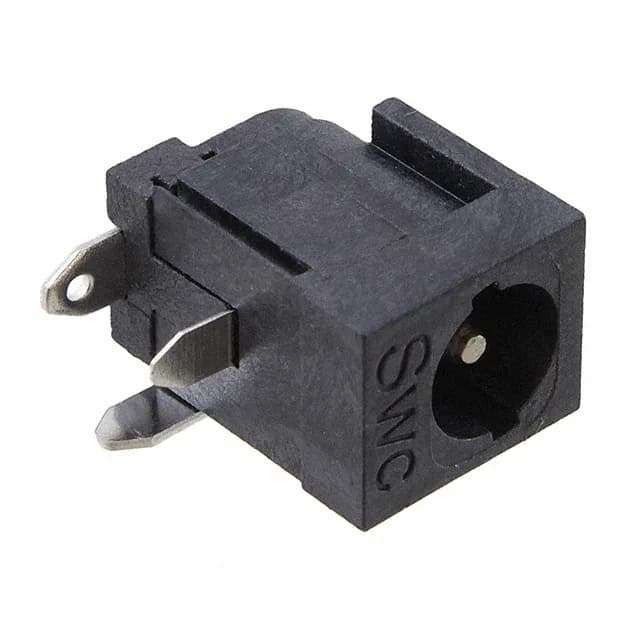

Switchcraft Inc. RAPC722BK

Switchcraft Inc. RAPC722BK

MPN RAPC722BK
Active

CONN PWR JACK 2X5.5MM SOLDER

$1.9700 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

RAPC722BK specifications
ParameterValue
MountingThrough Hole, Right Angle
Connector typeJack
Current rating5 A
Body colorBlack
Contact materialBrass
Housing materialThermoplastic
Contact material - platingSilver
GenderMale
PackageBulk
ShieldingUnshielded
TerminationSolder Eyelet(s)
Actual diameter0.079\" (2.00mm ID), 0.248\" (6.30mm OD)
Internal switchSingle Switch, Normally Closed
Number of positions (Contacts)2 Conductors, 3 Contacts
Industry recognized mating diameter2.00mm ID (0.079\"), 5.50mm OD (0.217\")
MPN
RAPC722BK
