Switchcraft Inc. RASH10PS
MPNRASH10PS
Active
CONN PWR JACK 2X5.5MM SOLDER
$6.68Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Surface Mount, Through Hole |
| Connector type | Jack |
| Voltage - rated | 24VDC |
| Current rating | 11 A |
| IP rating | IP68 |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -40°C ~ 105°C |
| Body color | Silver, Black |
| Body material | Copper Alloy |
| Contact material | Copper Alloy |
| Housing material | Thermoplastic |
| Contact material - plating | Silver |
All specifications
| Parameter | Value |
|---|---|
| Gender | Male |
| Package | Bulk |
| Features | Board Guide |

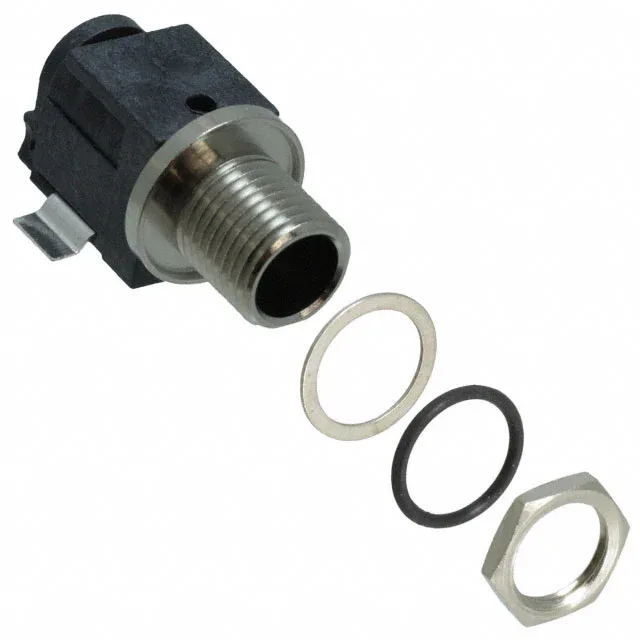

| Includes | 4 pcs - 1 Connector, 1 Nut, 1 O-Ring, 1 Washer |
| Shielding | Unshielded |
| Termination | Solder |
| Connector size | 5/16\"-32 |
| Actual diameter | 0.079\" (2.00mm ID), 0.252\" (6.40mm OD) |
| Internal switch | Single Switch, Normally Closed |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 2.00mm ID (0.079\"), 5.50mm OD (0.217\") |
