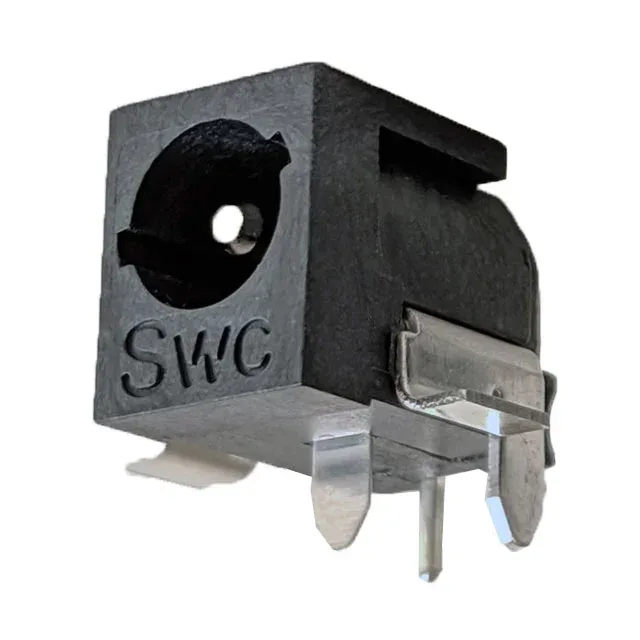

DC POWER JACK, BKZ LOCKING SERIE
$2.24Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Mounting type | Surface Mount, Right Angle |
| Connector type | Jack |
| Voltage - rated | 100VDC |
| Current rating | 5 A |
| Operating temperature | -30°C ~ 65°C |
| Body color | Black |
| Body material | Copper Alloy |
| Contact material | Copper Alloy |
| Housing material | Thermoplastic |
| Insulation color | Black |
| Contact material - plating | Silver |
| Gender | Male |
| Package | Bulk |
| Shielding | Unshielded |
| Termination | Solder |
| Actual diameter | 0.098\" (2.50mm ID), 0.248\" (6.30mm OD) |
| Internal switch | Single Switch, Normally Closed |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 2.50mm ID (0.098\"), 5.50mm OD (0.217\") |
Sourcing this connector
Switchcraft Inc. RASH712BKZ is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Switchcraft Inc. and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
