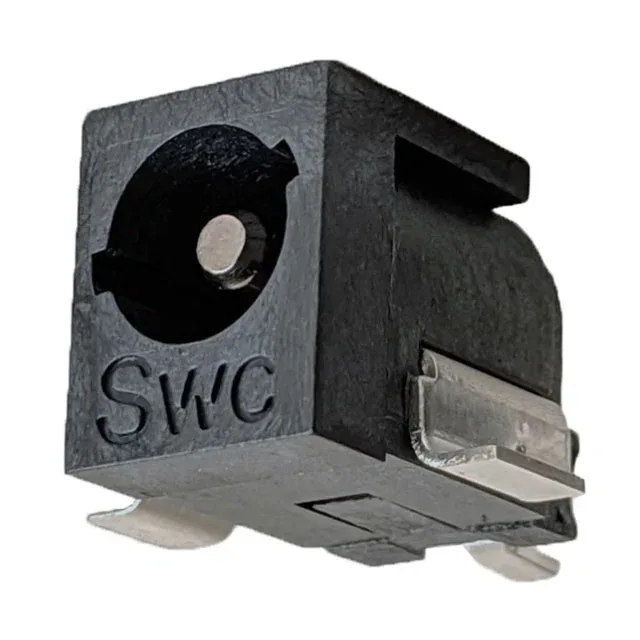

Switchcraft Inc. RASM712BKZ
MPNRASM712BKZ
Active
DC POWER JACK, BKZ LOCKING SERIE
$2.24Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Surface Mount, Right Angle |
| Connector type | Jack |
| Voltage - rated | 100VDC |
| Current rating | 5 A |
| Operating temperature | -30°C ~ 65°C |
| Body color | Black |
| Body material | Copper Alloy |
| Contact material | Copper Alloy |
| Housing material | Thermoplastic |
| Insulation color | Black |
| Contact material - plating | Silver |
| Gender | Male |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shielding | Unshielded |
| Termination | Solder |
| Actual diameter | 0.098\" (2.50mm ID), 0.248\" (6.30mm OD) |
| Internal switch | Single Switch, Normally Closed |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 2.50mm ID (0.098\"), 5.50mm OD (0.217\") |
