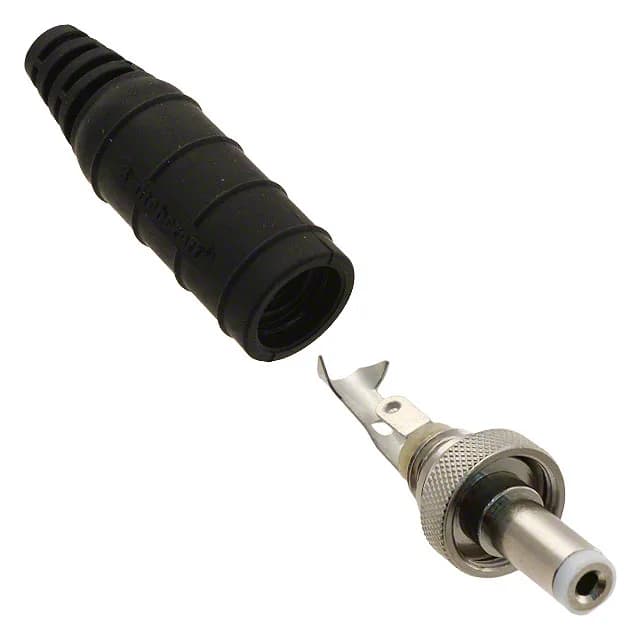

Switchcraft Inc. S761KS15
MPNS761KS15
Active
CONN PWR PLUG 2X5.5MM SOLDER
$7.8800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Voltage - rated | 30VDC |
| Current rating | 5 A |
| IP rating | IP68 |
| Body color | Silver, Black |
| Body material | Copper Alloy |
| Contact material | Copper Alloy |
| Housing material | Thermoplastic |
| Insulation color | White |
| Contact material - plating | Tin |
| Gender | Female |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Cable Clamp, Thread Lock |
| Includes | 2 pcs - 1 Connector, 1 Handle |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Actual diameter | 0.079\" (2.00mm ID), 0.217\" (5.50mm OD) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 2 Conductors, 2 Contacts |
| Industry recognized mating diameter | 2.00mm ID (0.079\"), 5.50mm OD (0.217\") |
