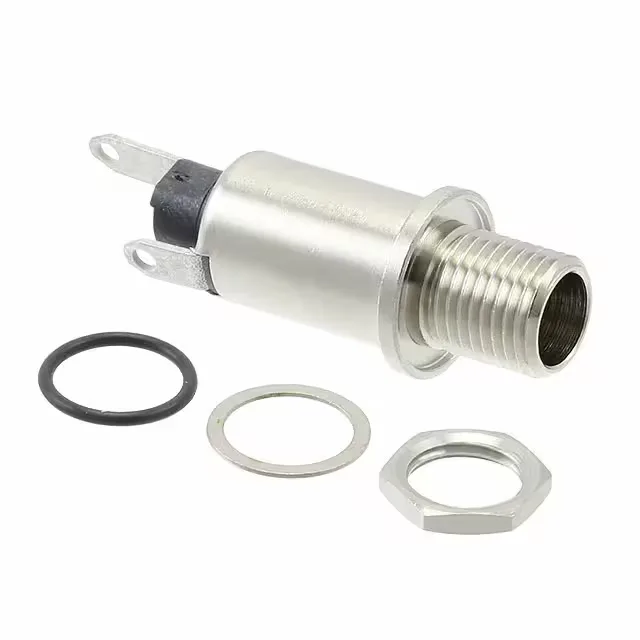

Switchcraft Inc. ST10U
MPNST10U
Active
CONN POWER JACK SOLDER EYELET
$9.68Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Panel Mount |
| Connector type | Jack |
| Voltage - rated | 24VAC/DC |
| Current rating | 10 A |
| IP rating | IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof |
| Body color | Silver, Black |
| Body material | Copper Alloy |
| Contact material | Copper Alloy |
| Housing material | Thermoplastic |
| Contact material - plating | Tin |
| Gender | Male |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Features | Mounting Hardware |
| Includes | 4 pcs - 1 Connector, 1 Nut, 1 O-Ring, 1 Washer |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Connector size | 5/16\"-32 |
| Actual diameter | 0.076\" (1.93mm ID), 0.226\" (5.75mm OD) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 2 Conductors, 2 Contacts |
| Industry recognized mating diameter | 2.00mm ID (0.079\"), 5.50mm OD (0.217\") |
