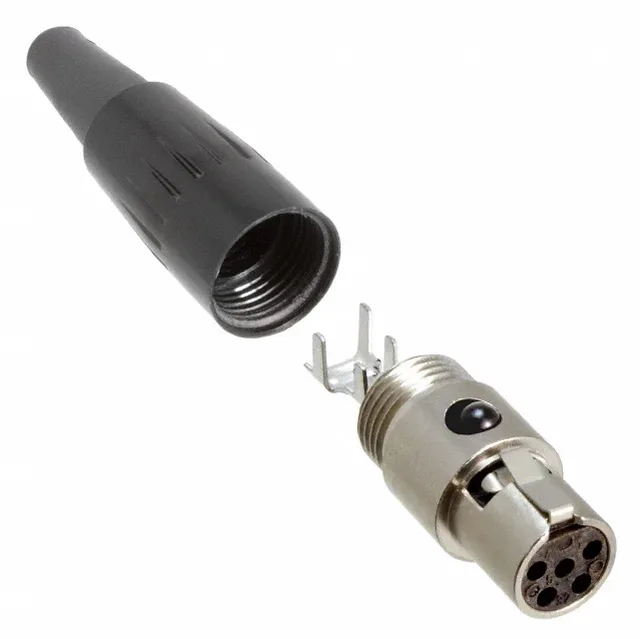

Switchcraft Inc. TA5FX
MPNTA5FX
Active
CONN PLUG FMALE MINI XLR 5P SLDR
$9.54Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTini Q-G® TA-X
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Tini Q-G® TA-X |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Female Sockets |
| Fastening type | Latch Lock |
| Voltage rating | 125VAC |
| Current rating | 4A |
| Cable opening | 0.065\" ~ 0.155\" (1.65mm ~ 3.94mm) |
| Operating temperature | -55°C ~ 85°C |
| Color | Black, Silver |
| Shell material | Copper Alloy |
| Insert material | Thermoplastic |
| Contact material | Copper Alloy |
All specifications
| Parameter | Value |
|---|---|
| Primary material | Metal |
| Backshell material, plating | Thermoplastic |
| Package | Bulk |
| Features | Backshell, Cable Clamp, Strain Relief |
| Shielding | Shielded |
| Orientation | Keyed |
| Termination | Solder |
| Applications | Audio |
| Shell finish | Nickel |
| Positions | 5 |
| Shell size - insert | Mini XLR |
| Contact finish - mating | Silver |
