Switchcraft Inc. TRAPC5MX
MPNTRAPC5MX
Active

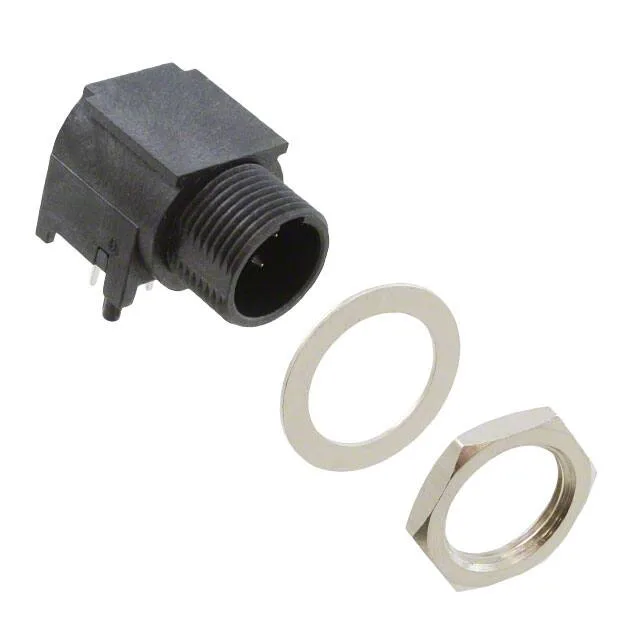

CONN RCPT MALE MINI XLR 5P SLDR
$12.27Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTini Q-G® TRAPC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Tini Q-G® TRAPC |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle, Male Pins |
| Fastening type | Latch Lock |
| Current rating | 5A |
| Mounting feature | Bulkhead - Front Side Nut |
| Color | Black |
| Shell material | Thermoplastic |
| Insert material | Thermoplastic |
| Contact material | Brass |
| Primary material | Plastic |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Guide |
| Orientation | Keyed |
| Termination | Solder |
| Applications | Audio, Medical, Testing Equipment & Measurement |
| Positions | 5 |
| Shell size - insert | Mini XLR |
| Contact finish - mating | Tin |
