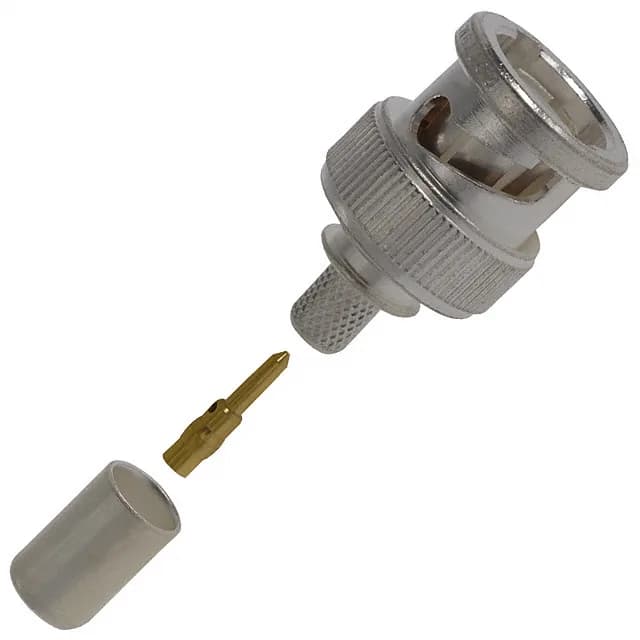

TE Connectivity Aerospace, Defense and Marine 2-331350-1
MPN2-331350-1
Active
$1.5300Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Coaxicon |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pin |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 4 GHz |
| Cable group | RG-58, 58A, 58B, 58C |
| Operating temperature | -55°C ~ 85°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Brass |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Includes | 4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket |
| Impedance | 50 Ohms |
| Body finish | Silver |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp |
| Center contact plating | Gold |
