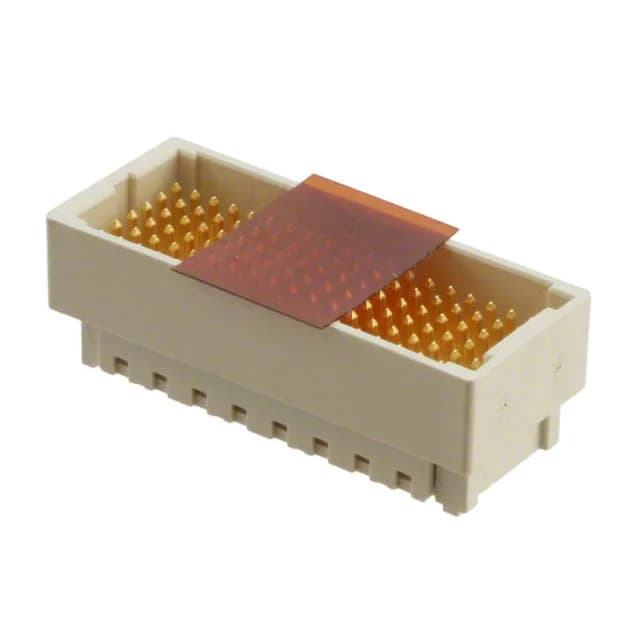

TE Connectivity Aerospace, Defense and Marine 2102060-2
MPN2102060-2
Active
$33.1673Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mezalok XMC |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Natural |
| Insulation height | 0.360\" (9.14mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Mated stacking heights | 10mm, 12mm, 15mm, 18mm |
| Style | Board to Board |
| Package | Tape & Reel (TR) Cut Tape (CT) |
All specifications
| Parameter | Value |
|---|---|
| Features | Pick and Place |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 6 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 114 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 50.0µin (1.27µm) |
