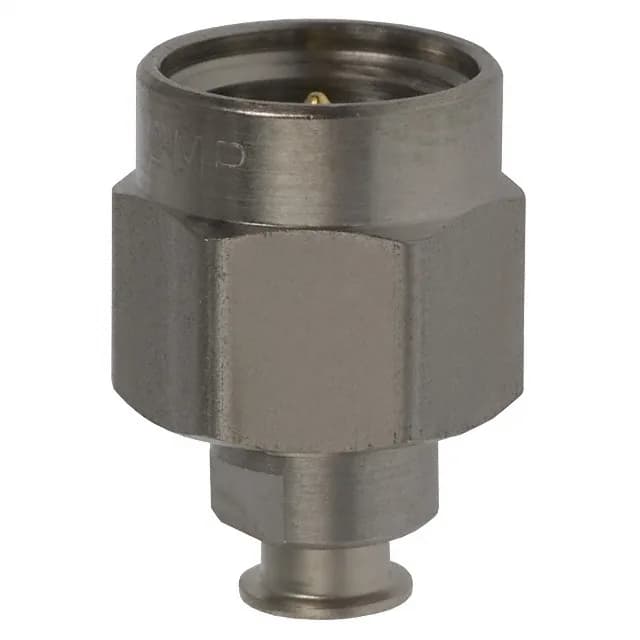

TE Connectivity Aerospace, Defense and Marine 221447-1
MPN221447-1
Active
$16.0200Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pin |
| Fastening type | Threaded |
| Voltage rating | 335 V |
| Frequency - max | 18 GHz |
| Cable group | RG-405 (.086 Semi Rigid) |
| Body material | Stainless Steel |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Beryllium Copper |
| Package | Bulk |
| Impedance | 50 Ohms |
| Mating cycles | 500 |
| Insertion loss | 0.3dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Center contact plating | Gold |
