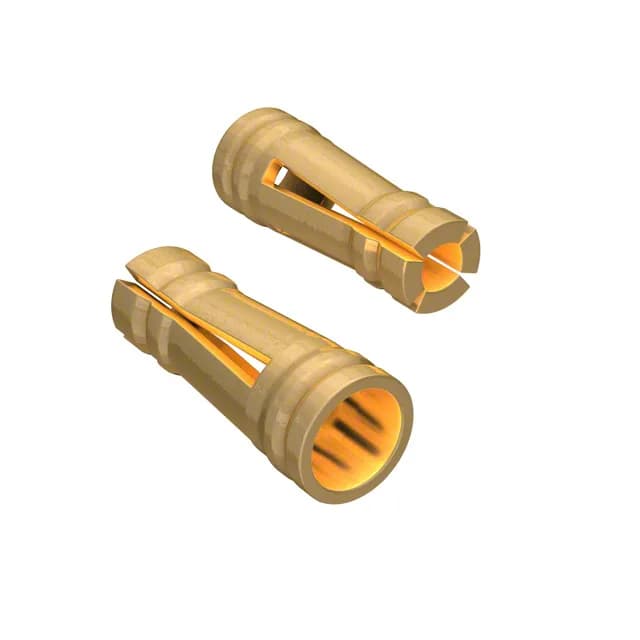

TE Connectivity Aerospace, Defense and Marine M8134-HC-5P2
MPNM8134-HC-5P2
Active
$0.4100Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HOLTITE |
| Tail type | No Tail |
| Mounting hole diameter | 0.041\" (1.04mm) |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Beryllium Copper |
| Grade | Military |
| Package | Bulk |
| Termination | Press-Fit |
| Qualification | MIL-DTL-83505 |
| Contact finish | Gold |
| Board thickness | 0.030\" (0.76mm) |
| Length - overall | 0.094\" (2.39mm) |
| Pin hole diameter | 0.026\" (0.66mm) |
| Accepts pin diameter | 0.016\" ~ 0.021\" (0.41mm ~ 0.53mm) |
| Contact finish thickness | 30.0µin (0.76µm) |
