Board-to-wire header, 50 circuits
The 1-102162-0 is the 50-circuit member of the TE Connectivity AMP-Latch header line, a shrouded board-to-wire header with push-pull fastening and a keying slot plus mounting flange for alignment.

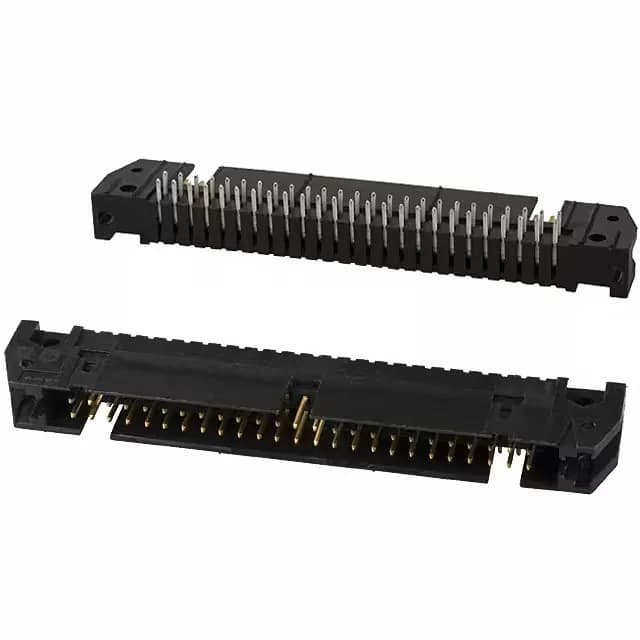

TE 1-102162-0 AMP-Latch Header, 50-Pos 2.54mm
MPN1-102162-0
Active
TE Connectivity AMP-Latch header, order code 1-102162-0, 50 positions, dual row, 0.100" (2.54 mm) pitch, 1 A per contact, 250 VAC, gold or gold-palladium mating contacts, through-hole right-angle, solder termination.
$7.5029Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.315\" (8.00mm) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 50 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.155\" (3.94mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What compliance documentation does TE provide for 1-102162-0?
Contact TE Connectivity for RoHS/REACH certification specific to this date code.
