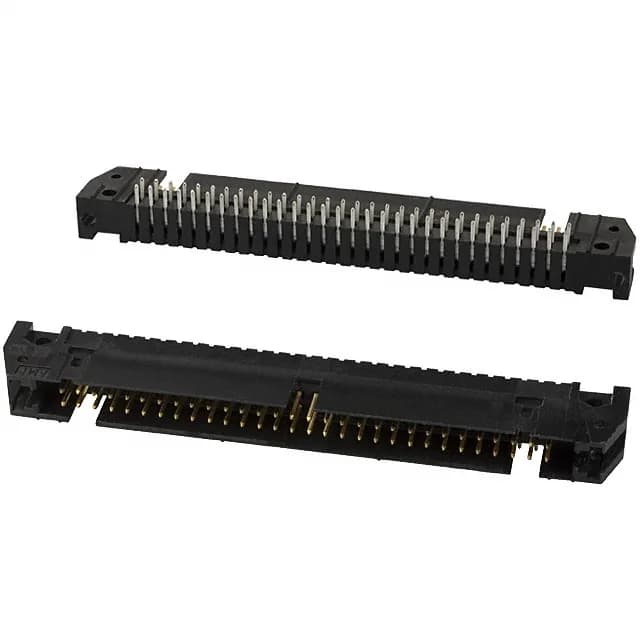

1-102162-1 TE AMP-Latch Header 60-Pos 2.54mm Right-Angle

MPN1-102162-1
Active

TE Connectivity AMP-Latch header, 1-102162-1, 60 positions, 0.100" (2.54mm) pitch, through-hole right-angle, shrouded 4-wall, 30µin gold mating finish, rated 1A per contact at 250VAC.

$9.4416Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-102162-1 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-102162-1 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.315\" (8.00mm)
Material flammability ratingUL94 V-0

All specifications

1-102162-1 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageBulk
FeaturesKeying Slot, Mounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions60
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.155\" (3.94mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

60-Position Shrouded Header for Dense Cable-to-Board Routing

Mounting and Keying for Positive Alignment

A keying slot and mounting flange on the housing ensure correct orientation and secure attachment to the board or panel, reducing the risk of misalignment during assembly. The insulation height of 0.315" (8.00mm) and mating pin length of 0.240" (6.10mm) define the clearance needed above the board for the mating receptacle. The post length of 0.155" (3.94mm) suits standard through-hole soldering processes.

Frequently asked questions

What is the mounting type and orientation of 1-102162-1?

It is a through-hole right-angle header. The pins solder into plated through-holes, and the connector body sits parallel to the PCB surface, suiting board-edge routing.

Is 1-102162-1 shrouded?

Yes, it is fully shrouded with a 4-wall design.
