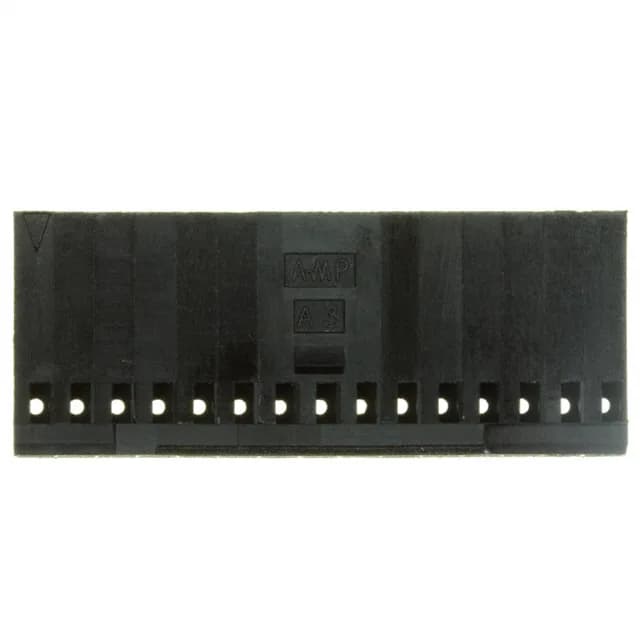

TE Connectivity AMPMODU Mod IV receptacle housing, 15 circuits, 1 row, 0.100" (2.54mm) pitch, crimp termination, free-hanging, locking ramp, black PA housing, -65°C to 105°C.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Locking Ramp |
| Operating temperature | -65°C ~ 105°C |
| Color | Black |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 15 |
Critical: contacts are not included. Without the terminals, the housing is just a plastic shell.
This receptacle mates with any AMPMODU Mod IV 0.100" pitch pin header that has a locking ramp feature on the same side. The header must also be 15 positions in a single row.
Any AMPMODU Mod IV 0.100" pitch pin header with a locking ramp, 15 positions, single row. The header can be unshrouded or shrouded, straight or right-angle, as long as the latch feature aligns with the housing ramp.
