The 1-102557-0: Tin-lead on the post (100.0 µinch) is compatible with standard solder processes.
The 0.250" (6.35 mm) post length provides enough standoff for board clearance and wave solder if a secondary solder joint is specified.

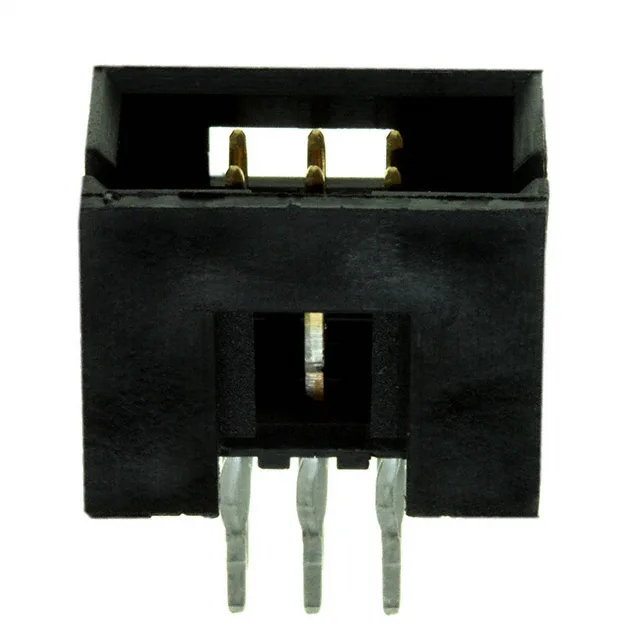

1-102557-0 TE Connectivity AMPMODU Mod II Header, 6-Pos
MPN1-102557-0
Active
TE Connectivity AMP Connectors AMPMODU Mod II header, 1-102557-0, 6 positions, 0.100" (2.54 mm) pitch, shrouded 4-wall, through-hole press-fit, gold-plated male pins, rated 3 A, -55°C to 105°C, UL94 V-0.
$2.6881Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.440\" (11.18mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.250\" (6.35mm) |
| Overall contact length | 0.660\" (16.76mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.320\" (8.13mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the mating connector for 1-102557-0?
This header mates with AMPMODU Mod II receptacles — both 0.100" pitch, 2-row, 6-position socket housings from the same series.
Is 1-102557-0 RoHS compliant?
The contact finish on the post is tin-lead, which is not RoHS-compliant. Verify your application's exemption requirements before ordering.
Is 1-102557-0 available in different pin counts?
The base product number 102557 covers a family of AMPMODU Mod II headers in various positions.
