24-position shrouded header, 0.100" pitch

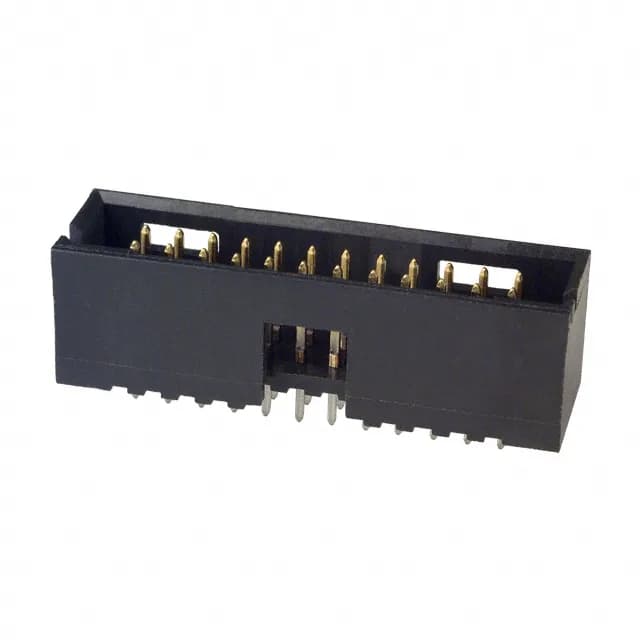

The 1-102619-0 is the 24-circuit member of the TE Connectivity AMP Connectors AMPMODU Mod II header line, a shrouded four-wall design with detent lock for board-to-board or cable mating.
TE 1-102619-0 AMPMODU Mod II Header, 24 Pos, Obsolete
MPN1-102619-0
Obsolete
TE Connectivity AMP Connectors AMPMODU Mod II header, order code 1-102619-0, 24 positions, dual row, 0.100" (2.54 mm) pitch, 3 A, gold-plated mating contacts, through-hole, solder termination, shrouded with detent lock.
$6.9300Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.440\" (11.18mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 24 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to 1-102619-0?
The functional replacement would require a different part number and board layout verification.
