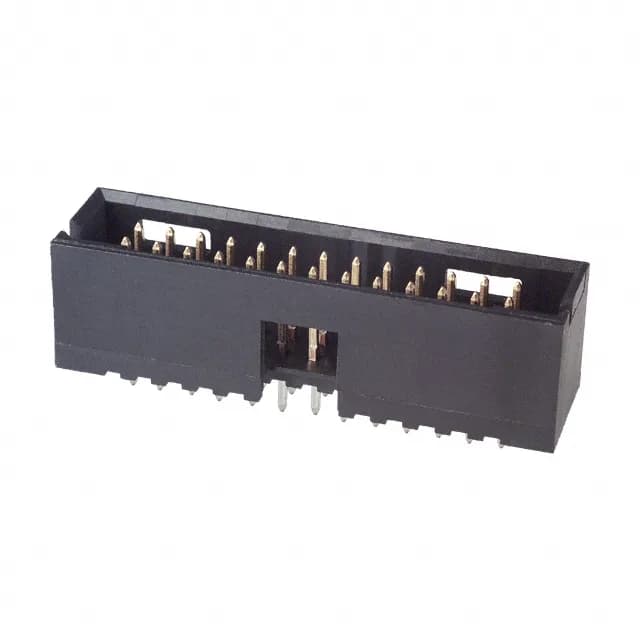

26-position shrouded header in the AMPMODU Mod II line
The 1-102619-1 is the 26-position member of TE's AMPMODU Mod II header family, a shrouded 4-wall design with a detent lock for positive mating retention. It carries gold-plated mating contacts rated 3 A and mounts through-hole with solder termination — the 0.100" (2.54 mm) pitch and row spacing match the standard AMPMODU Mod II footprint.
Obsolete — sourcing guidance
The 1-102619-1 is listed as Obsolete by the manufacturer. Available through independent surplus channels — quantities are lot-specific and confirmed at RFQ.
Housing and contact materials
The housing is molded from thermoplastic rated UL94 V-0. Contacts are phosphor bronze with 15.0 µin (0.38 µm) gold on the mating surface and 100.0 µin (2.54 µm) tin-lead on the post.
