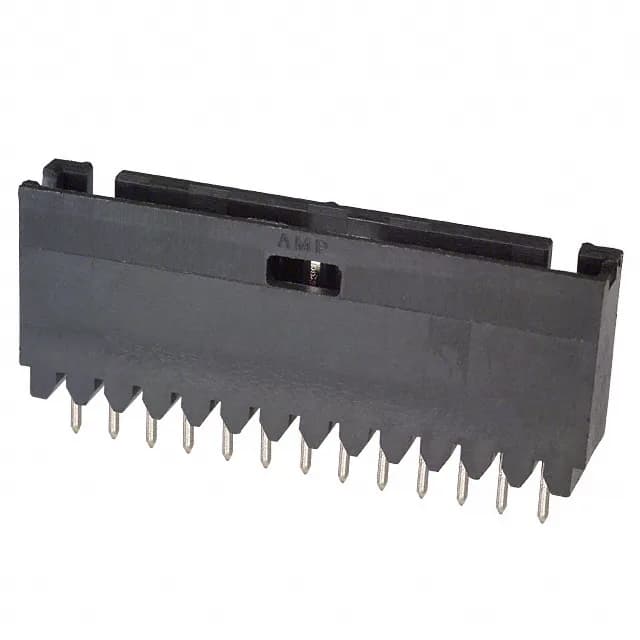

TE Connectivity AMPMODU Mod II header, order code 1-103080-1, 13 positions, single row, 0.100" (2.54mm) pitch, 3 A, tin-lead mating contacts, through-hole, solder termination.
TE 1-103080-1 AMPMODU Mod II Header, 13 Pos, Obsolete
MPN1-103080-1
Obsolete
TE Connectivity AMPMODU Mod II header, order code 1-103080-1, 13 positions, single row, 0.100" (2.54mm) pitch, 3 A, tin-lead mating contacts, through-hole, solder termination.
$1.1400Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 13 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.589\" (14.96mm) |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
Where can I buy 1-103080-1 and how do I get a price?
The 1-103080-1 is available through independent surplus channels. Request a quote for current availability and pricing.
