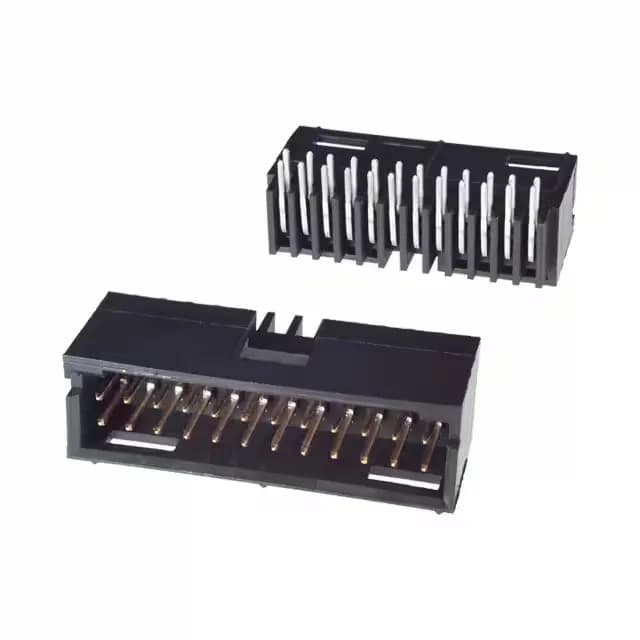

TE Connectivity AMPMODU Mod II header, order code 1-103166-0, 24 positions, dual row, 0.100" (2.54mm) pitch, 3 A, gold-plated mating contacts, through-hole right-angle, solder termination, shrouded - 4 wall.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.400\" (10.16mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 24 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.135\" (3.43mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-103166-0 is the 24-position member of TE's AMPMODU Mod II header line, configured for board-to-board or cable connections with a shrouded - 4 wall design that protects contacts during mating. Through-hole right-angle mounting with a detent lock secures the mating half; gold on the mating interface and tin-lead on the post carry the 3 A per-contact rating.
RoHS and REACH compliance status should be confirmed against the specific lot at the time of purchase, as the part is discontinued and documentation may vary by date code.
