Mating contacts are gold-plated to 30 µinch (0.76 µm) over phosphor bronze base metal. The solder posts are tin-lead plated to 100 µinch (2.54 µm) — compatible with standard wave-solder profiles.
No press-fit or surface-mount option is offered.

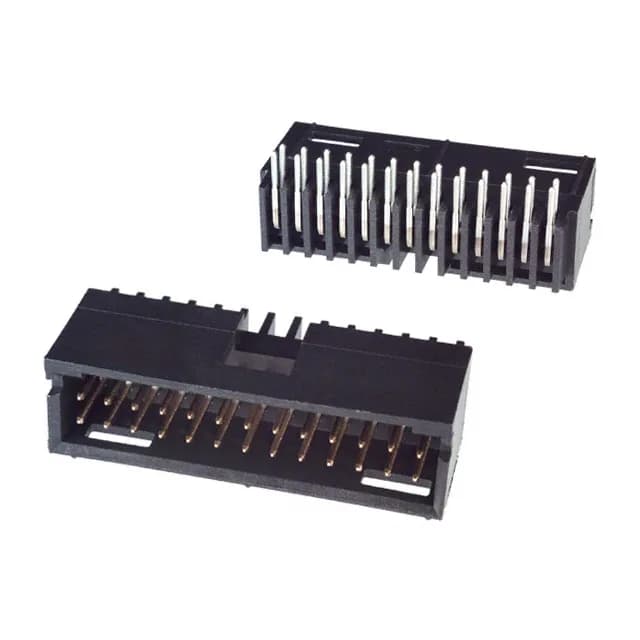

1-103166-1 TE AMPMODU Mod II Header, 26 Pos, 0.100" Pitch
MPN1-103166-1
Obsolete
TE Connectivity AMPMODU Mod II, 26-position, 2-row, 0.100" (2.54 mm) pitch, shrouded header, through-hole right-angle, gold-plated male pins, 3 A, detent lock, UL94 V-0.
$9.8000Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.400\" (10.16mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.135\" (3.43mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Is 1-103166-1 RoHS compliant?
The contact finish on the post is tin-lead, which is not RoHS-compliant. The mating finish is gold. Check the specific RoHS status with your supplier at RFQ.
What is the mating connector for 1-103166-1?
The detent lock on the header requires a matching receptacle with a locking ramp.
