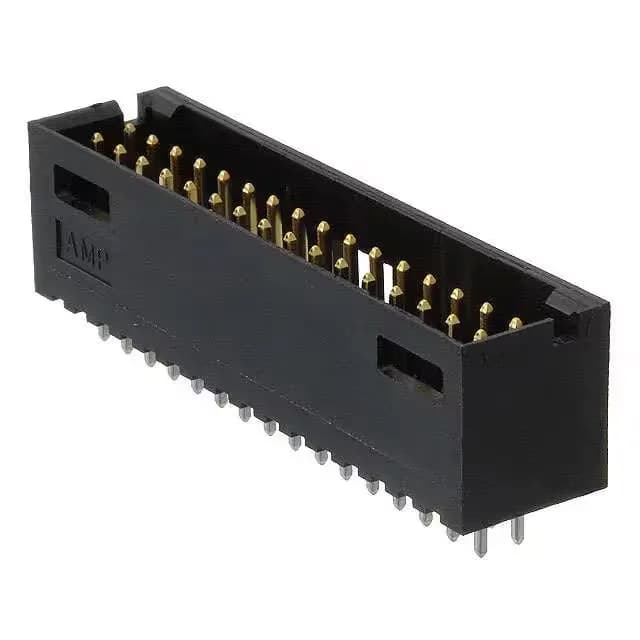

TE Connectivity AMPMODU Mod II header, order code 1-103168-4, 32 positions, dual row, 0.100" (2.54mm) pitch, 3A, gold-plated mating contacts, through-hole, solder termination, shrouded 4-wall with detent lock.
TE 1-103168-4 Header, 32 Pos, 2.54mm, AMPMODU Mod II
MPN1-103168-4
Active
TE Connectivity AMPMODU Mod II header, order code 1-103168-4, 32 positions, dual row, 0.100" (2.54mm) pitch, 3A, gold-plated mating contacts, through-hole, solder termination, shrouded 4-wall with detent lock.
$3.0900Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.440\" (11.18mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 32 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the connector style and series for 1-103168-4?
The style is Board to Board or Cable, and the series is AMPMODU Mod II from TE Connectivity.
What is the mating pitch and position count for this header?
Mating pitch is 0.100" (2.54mm) with 32 positions loaded in a dual-row arrangement.
