TE Connectivity AMP Connectors 1-103310-0 — Pin Headers

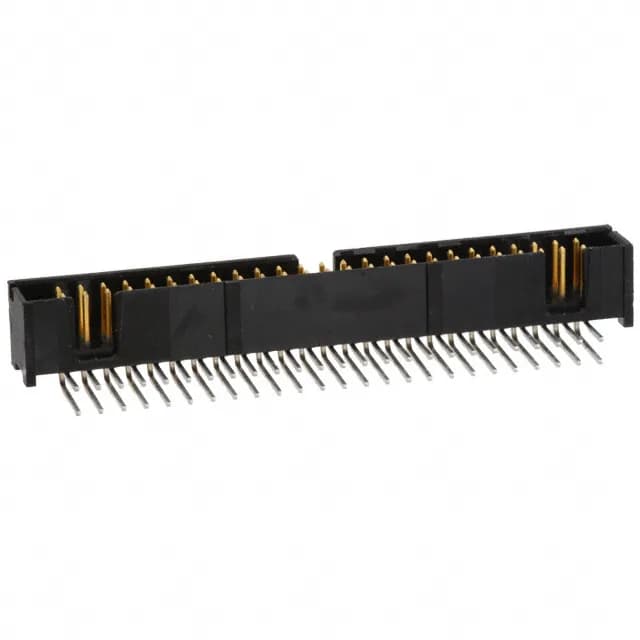

1-103310-0 TE Connectivity AMP-Latch Header, 50 Pos, 2.54mm

MPN1-103310-0
Active

TE Connectivity AMP-Latch shrouded header, 1-103310-0, 50 positions, 0.100" (2.54mm) pitch, right-angle through-hole, male pin, 1A per contact, RoHS non-compliant, active production.

$6.2800Ref. price · indicative, final on quote
RoHSRoHS non-compliant
SeriesAMP-Latch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-103310-0 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.360\" (9.14mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

1-103310-0 additional specifications
ParameterValue
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions50
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.135\" (3.43mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

1-103310-0 is a 50-position, 2-row, right-angle through-hole header from the AMP-Latch series. The 4-wall shrouding protects the 0.240" (6.10mm) long mating pins during handling and guides the cable-side receptacle into alignment. A keying slot prevents mismating with non-keyed sockets. The mating contacts are finished with 15.0µin gold or gold-palladium for reliable low-level signal connections over repeated mating cycles.

Contact length after the board is 0.135" (3.43mm) — a standard through-hole solder tail for 1.6mm thick PCBs.

Frequently asked questions

Is 1-103310-0 RoHS compliant?

No, 1-103310-0 is RoHS non-compliant. The contact post finish is tin-lead (100.0µin thickness). If your application requires RoHS compliance, check the AMP-Latch series for gold or tin-plated alternatives.

What is the mating connector for 1-103310-0?

The 4-wall shrouding and keying slot ensure proper alignment with a keyed receptacle.
