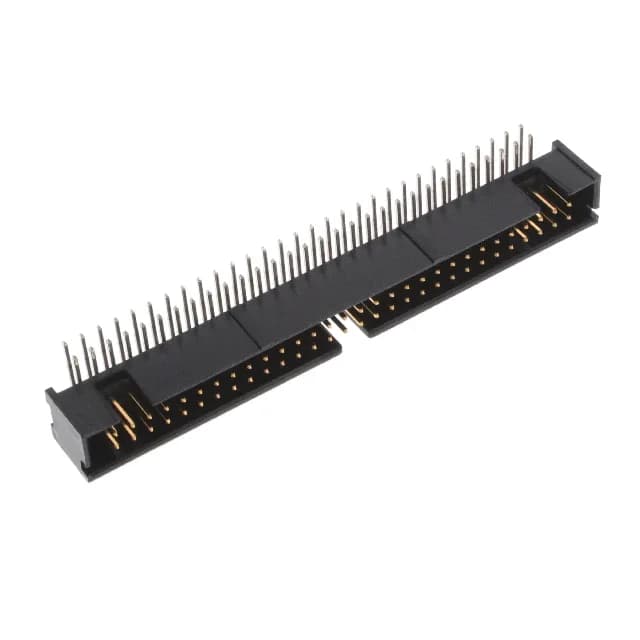

TE Connectivity AMP-Latch, Header, 60 Positions, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Shrouded - 4 Wall, Gold or Gold-Palladium Mating Finish, 1A per Contact, UL94 V-0
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.360\" (9.14mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 60 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.135\" (3.43mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-103311-2: This TE Connectivity AMP-Latch header packs 60 positions across two rows at 0.100" (2.54mm) pitch, making it a dense but still hand-solderable interface for parallel data or control buses.
Rated 1A per contact, this is strictly a signal interconnect — not for power distribution.
Packaged in tray. The base product number is 103311; the full order code is 1-103311-2.
No. The contact finish on the post is tin-lead, which means this part is RoHS non-compliant. If your application requires lead-free, look for an AMP-Latch variant with a tin post finish.
This is a shrouded header from the AMP-Latch series. Confirm the mating half's keying slot alignment — this header includes a keying slot feature.
