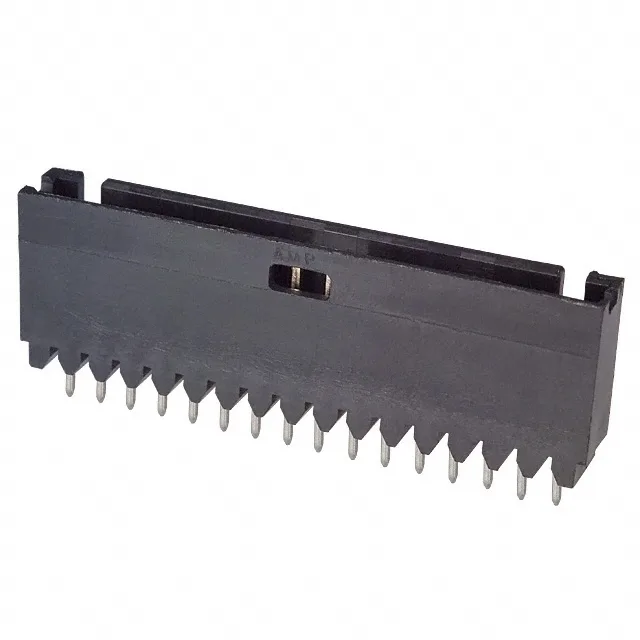

TE Connectivity AMPMODU Mod II header, order code 1-103414-4, 16 positions, single row, 0.100" (2.54 mm) pitch, 3 A, gold-plated mating contacts, through-hole, push-pull fastening, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.589\" (14.96mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-103414-4 is a 16-position, single-row header from the TE AMPMODU Mod II series, shrouded on four walls with push-pull fastening.
The 1-103414-4 is listed as Obsolete by TE Connectivity AMP Connectors.
No official pin-compatible alternative is recorded from TE Connectivity AMP Connectors. A board spin may be required for a functional replacement.
