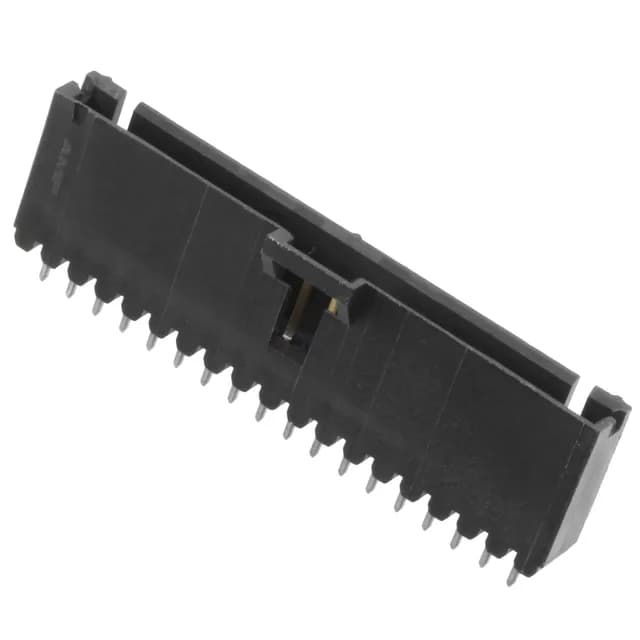

TE Connectivity AMP Connectors AMPMODU MTE header, order code 1-103638-7, 18 positions, single row, 0.100" (2.54mm) pitch, gold mating contacts, through-hole solder, shrouded 4-wall, latch holder.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 18 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1-103638-7 is the 18-circuit member of TE's AMPMODU MTE header line, a single-row shrouded header with a latch holder for positive retention. It mates on a 0.100" (2.54mm) pitch, terminates by through-hole solder, and carries gold on the mating contact surface with tin-lead on the post.
The part carries RoHS and REACH compliance documentation from TE Connectivity AMP Connectors. No UL or IEC certification is listed in the available records.
