TE Connectivity AMP Connectors 1-103653-4 — Connector Housings

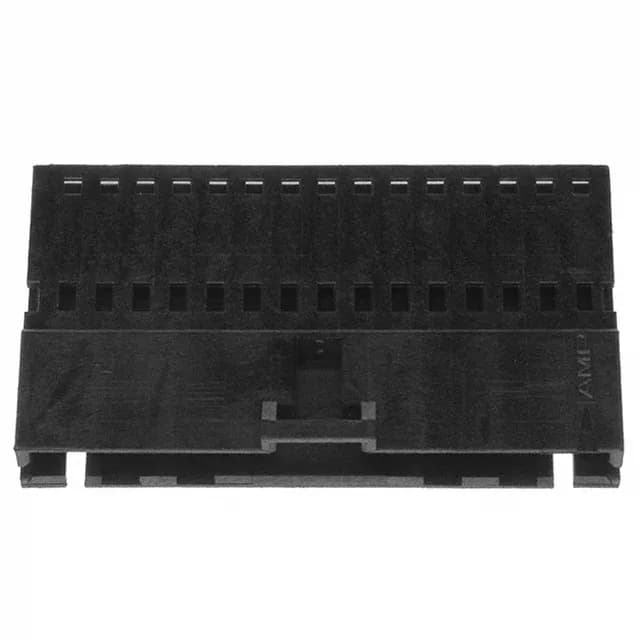

TE AMPMODU MTE 1-103653-4 Plug Housing, 15 Pos, 2.54mm

MPN1-103653-4
Active

TE Connectivity AMPMODU MTE plug housing, 1-103653-4, 15 positions, 1 row, 0.100" (2.54mm) pitch, crimp termination, latch holder, black LCP, free hanging, contacts not included.

$3.2300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU MTE
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-103653-4 specifications
ParameterValue
SeriesAMPMODU MTE
TypeMale Pin
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLatch Holder
Operating temperature-65°C ~ 105°C
ColorBlack
Insulation materialLiquid Crystal Polymer (LCP)
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions15

Product details

15-Position AMPMODU MTE Plug Housing

Position Count and Series Fit

At 15 positions, this housing sits at the upper end of the AMPMODU MTE single-row plug range. The same series also offers 12-position (1-103653-1), 10-position (103653-9), and 8-position (103653-7) variants — all sharing the same 0.100" (2.54mm) pitch, latch holder, and black LCP construction. The choice between them is purely a circuit-count decision: match the number of positions to the signal or power lines in your harness.

Contacts and Termination

The crimp termination allows field-serviceable harness builds without soldering.

Frequently asked questions

Are contacts included with 1-103653-4?

No. The listing explicitly notes that contacts are not included. The male pin crimp terminals must be ordered separately as a distinct line item.
