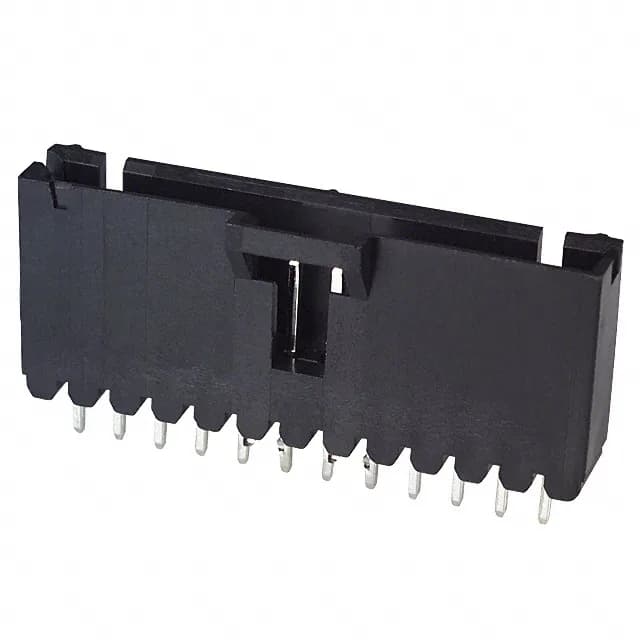

TE Connectivity AMPMODU MTE, Header, 12 Positions, 0.100" (2.54mm) Pitch, Shrouded - 4 Wall, Press-Fit/Solder Termination, Latch Holder, Black Insulation, UL94 V-0
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.545\" (13.84mm) |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Termination is listed as press-fit and solder. Press-fit avoids the thermal cycle of reflow for a solderless connection; solder gives a permanent joint.
The product status is active.
The latch holder and shrouded 4-wall design provide vibration resistance and keying slot for mis-mate protection.
Yes, the 1-103669-1 is part of the AMPMODU MTE series. It mates with AMPMODU MTE receptacles and housings that accept 12 positions on a 0.100" pitch.
