Termination and retention
The 1-103669-5: Termination is press-fit compatible with solder — the 0.130" (3.30mm) post length suits standard through-hole boards. The latch holder and keying slot prevent mis-mating and hold the pair under vibration.

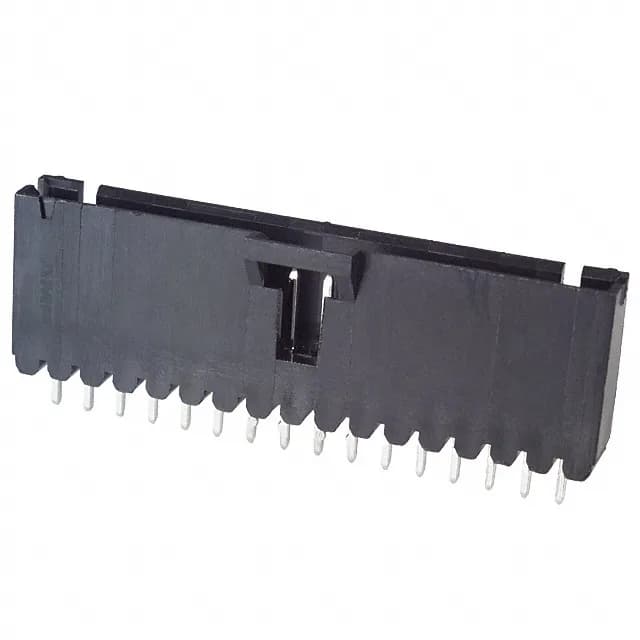

TE 1-103669-5 AMPMODU MTE Header, 16 Pos, 2.54mm
MPN1-103669-5
Active
TE Connectivity AMP Connectors AMPMODU MTE header, order code 1-103669-5, 16 positions, single row, 0.100" (2.54mm) pitch, 3 A, tin-lead mating contacts, through-hole, press-fit/solder termination.
$3.1764Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.545\" (13.84mm) |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
What is the pitch and position count of the 1-103669-5?
All positions are loaded.
