TE Connectivity AMPMODU MTE header, order code 1-103670-0, 11 positions, single row, 0.100" (2.54mm) pitch, 3 A, 267 V, gold-plated mating contacts, through-hole, press-fit and solder termination.

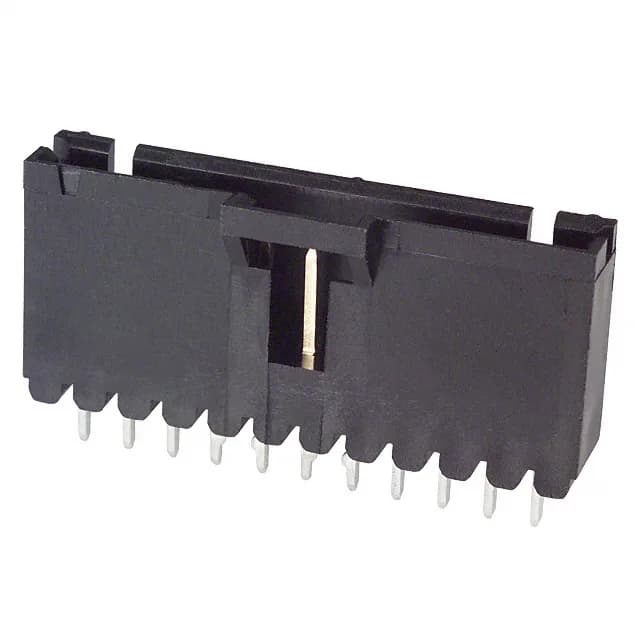

TE AMPMODU MTE 1-103670-0 Header, 11 Pos, 2.54mm
MPN1-103670-0
Active
TE Connectivity AMPMODU MTE header, order code 1-103670-0, 11 positions, single row, 0.100" (2.54mm) pitch, 3 A, 267 V, gold-plated mating contacts, through-hole, press-fit and solder termination.
$1.2117Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 267V |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 11 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
What is 1-103670-0's listed style?
The listed style is Board to Board or Cable, indicating it can be used for board-to-board or wire-to-board interconnects.
What compliance documentation does TE Connectivity provide for 1-103670-0?
RoHS and REACH compliance documentation is available from TE Connectivity upon request.
